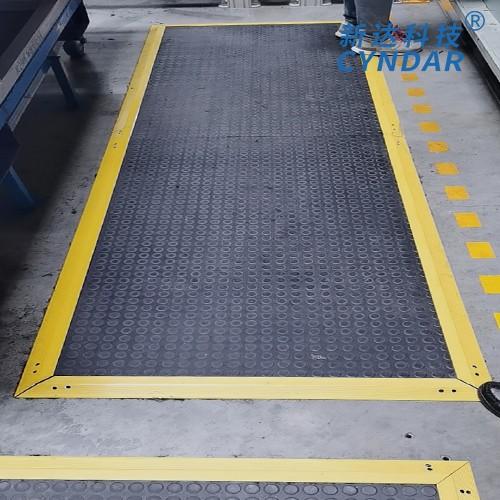

safety pressure mat sensor

Product Item：PSM4

Cable: 4 cores * 0.32² * 3m shielded cable (can be customized to be extended, 2 cores can be customized)
Complies with: EN ISO 13849-1 (PLd/Safety Category 3) and EN ISO 13856-1
Controller: Can be used with SRC106 safety mat controller
Trigger force: >30kg
Applicable environment: factory
Mat: 14mm thickness, hard board, durable and long life
Splicing: Multiple pieces can be spliced together for one device
For more details, please refer to the product manual

Product Detail
FAQs

Industrial Safety System Description

Safety Mat and Smart Safety Controller

Download Safety Mat Brochure

For more details, please add WhatsApp consultation: +8618922155361

safety cushion mat is a protection device to protect people

Features:

1. Any rectangular size can be assembled

2. Have safety level certification

3. Use in combination with safety mat controller

Model specifications

PSM4 - A * B - C D E F - G - H

	A	B	C	D	E	F	G	H
Model	Width	Length	Number of splicing	Size Description	Color/Material Configuration	Resistor Configuration	Cable length	Controller
PSM4 Default	L2:Safety pad width	L1: safety pad length	1：Not writing	A: After installing the outer frame	B: Black rubber surface (default)	K: 4-core cable (default)	3m: Standard configuration. Not writing (default)	SRC: safety relay
PSM6			2: Splice 2 pieces	F: Net carpet size, additional frame required	Y: Yellow PVC (pattern)	KF: 2 sets of 2 cores	6m: 6 meters cable
PSM11			3: Splice 3 pieces	P: Net carpet size, without outer frame	H: Red PVC (pattern)	R: With terminal resistor (8.2KΩ)	8m: 8 meters cable
			4: Splice 4 pieces	S: Customized type

For example:

PSM4-1000*500-ABK-SRC

Technical parameters - 14mm thick hard mat, total size including outer frame installation is 1000*500 (mm), length and width each add 90mm (excluding 15mm stuck in the mat), clean mat is 910*410 (mm), black rubber surface, K-type 4-core cable, 3 meters; equipped with a safety relay

PSM4-2000*1000-2FHR-8m-SRC

Safety mat
Adapt to detection range	It is suitable for inspection personnel in general working conditions and cannot withstand vehicle crushing and heavy object impact.
Recommended use occasions	Suitable for safety protection in personnel operating areas; PSM4 - regular model, the hard board is more wear-resistant and durable, and is suitable for one side larger than 400mm (the default is PSM4 without instructions); PSM6 - Soft pad, more responsive, non-bendable, suitable for small sizes; PSM11 - soft padded, thinner, non-bendable, height restricted for narrow locations;
Applicable industries	Paper industry, electronics industry, automobile welding production lines, forging production lines, general industrial applications and automatic palletizers and other light and heavy industrial applications
Dimensions (net mat)	Customized width range: 200mm-1000mm Customized length range: 200mm-2000mm				Surface Material-PSM4	PSM4-rubber (black particles for anti-skid) or PVC (red and yellow patterns for anti-skid);
Edge sealing form	Yellow aluminum edge sealing				Surface material-PSM6, PSM11	Hard sole
Maximum allowable load (8 hours)	≤ 400N/cm2				Mechanical life PSM4	＞1，000,000
Maximum humidity (23 degrees)	95% (condensation)				Mechanical life PSM6	＞800,000
Ambient temperature (usage environment)	-5℃ to 55℃ (no icing or condensation)				Mechanical life PSM11	＞700,000
Ambient temperature (storage environment)	-10℃ to 60℃				Cable	4-core*0.32² shielded cable, 3M standard (can be customized and lengthened)
Triggering force	PSM4-Adult 30KG		PSM6/11-Adult 20KG		Output type	2NO(passive normally open)
Protection level	IP65				Series connection	Series connection of less than 5/6 blocks is allowed (or no more than 4-5 square meters)
Thickness	PSM4-14mm	PSM6-15mm		PSM11-11mm	Controller maximum voltage	DC24V (using 0V control)
Response time	＜30ms				Switching current\voltage	Max.100mA \5V
Weight	About 20kg/m²				Allowed single block area	1.5m²
Conform to Standard application	The non-isolated safety protection system composed of safety mat and SRC106 safety relay meets the following standards.EN1760-1 ISO13856-2 EN62061 EN ISO13849-1 EN60204-1 EN/IEC 61496-1

The characteristics of industrial safety mats can be clearly summarized as follows:

Safety mats are usually composed of electronic components and rubber materials to form a flat safety device to detect the presence of personnel.

Equipped with aluminum alloy pressure edges, it plays a fixing role to prevent displacement or sliding during use.

The controller is highly reliable, and each safety mat has multiple wires connected to the safety mat controller to ensure the stability and safety of signal transmission.

Customization and flexibility:

It can be customized according to the specific needs of customers, including size, color, shape, etc.

Compared with other protective equipment, such as mechanical fences, sliding doors, etc., the safety mat system is more free, flexible, and labor-saving, while retaining the full view and full access characteristics of the working area.
