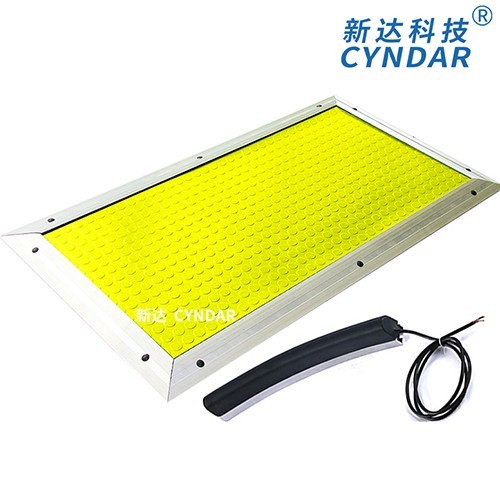

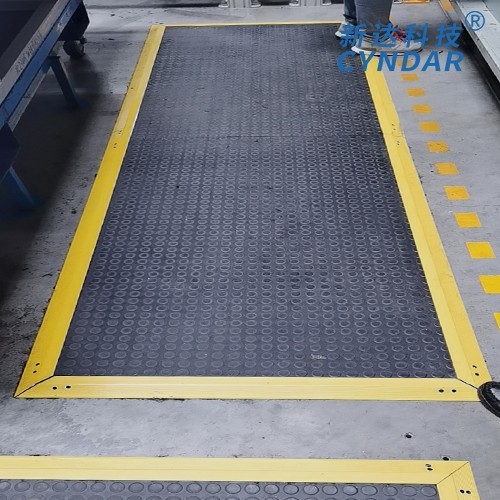

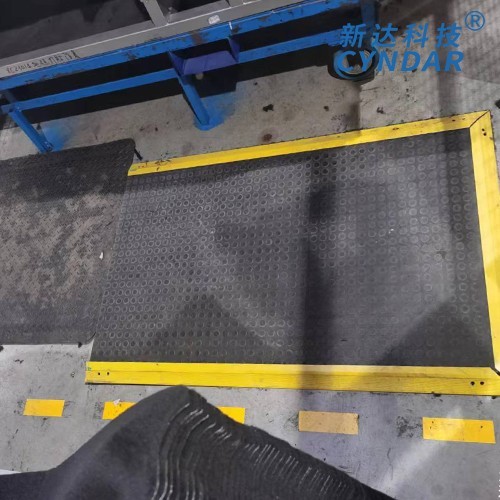

Product Item:PSM4
Frame: 16mm thickness, yellow aluminum alloy
Size: Various sizes can be flexibly customized, the minimum size is 500*500 (mm)
Splicing: Multiple pieces can be spliced ​​together for one device
Mechanical life: 1 million times
Response time: <30ms
Weight: about 20kg/m²
Protection level: IP65 (not suitable for outdoor or water-rich environments)
For more details, please refer to the product manual
  • Product Detail
  • FAQs

Contact us:

For more information or consultation, please feel free to contact us via WhatsApp, our contact number is: +8618922155361. We look forward to working with you to create a safe and efficient industrial environment.

Download Safety Mat Brochure




Industrial Safety System Description

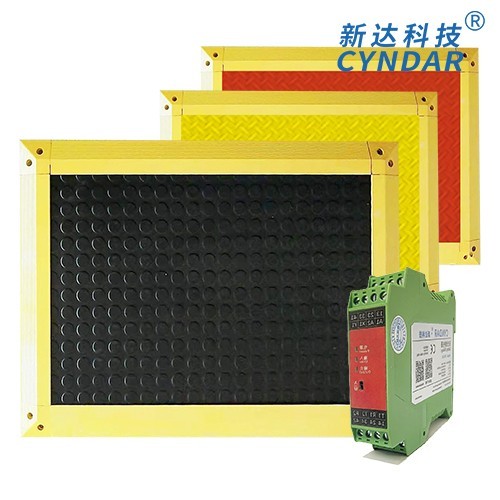

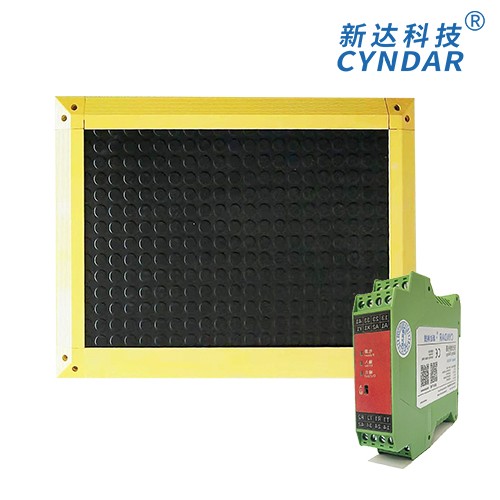

Safety Mats and Smart Safety Controller

Product Features:

We bring you an unconventional industrial safety system that combines a tactile surface sensor safety mat with a smart safety controller to ensure timely delivery. If you want to learn more about all the technical parameters, you are welcome to download the product manual at any time.


Advantages of Smart Safety Controller:

High Reliability: The controller is well designed to ensure perfect cooperation with the safety mat and provide long-lasting and stable safety monitoring.

Simplified Setup and Maintenance: By using it in conjunction with the safety mat, the machine setup, maintenance and repair process are greatly simplified and maintenance costs are reduced.

Model specifications



 PSM4 -   A   *  B   -   C   D   E   F  -  G  - H




 A

BCDEFGH

Model

WidthLengthNumber of splicingSize DescriptionColor/Material ConfigurationResistor ConfigurationCable lengthController

PSM4

Default

L2:Safety pad width

L1: safety pad length

1:Not writing

A: After installing the outer frame

B: Black rubber surface (default)

K: 4-core cable (default)


3m:  Standard configuration. Not writing (default)

SRC: safety relay

PSM6



2: Splice 2 pieces

F: Net carpet size, additional frame required

Y: Yellow PVC (pattern)

KF: 2 sets of 2 cores

6m: 6 meters cable


PSM11



3: Splice 3 pieces

P: Net carpet size, without outer frame

H: Red PVC (pattern)

R: With terminal resistor (8.2KΩ)

8m: 8 meters cable





4: Splice 4 pieces

S: Customized type






For example:

PSM4-1000*500-ABK-SRC

Technical parameters - 14mm thick hard mat, total size including outer frame installation is 1000*500 (mm), length and width each add 90mm (excluding 15mm stuck in the mat), clean mat is 910*410 (mm), black rubber surface, K-type 4-core cable, 3 meters; equipped with a safety relay

PSM4-2000*1000-2FHR-8m-SRC




Safety mat

Adapt to detection range

It is suitable for inspection personnel in general working conditions and cannot withstand vehicle crushing and heavy object impact.

Recommended use occasions

Suitable for safety protection in personnel operating areas;

PSM4 - regular model, the hard board is more wear-resistant and durable, and is suitable for one side larger than 400mm (the default is PSM4 without instructions);

PSM6 - Soft pad, more responsive, non-bendable, suitable for small sizes;

PSM11 - soft padded, thinner, non-bendable, height restricted for narrow locations;

Applicable industries

Paper industry, electronics industry, automobile welding production lines, forging production lines, general industrial applications and automatic palletizers and other light and heavy industrial applications



Dimensions (net mat)



Customized width range: 200mm-1000mm

Customized length range: 200mm-2000mm

Surface Material-PSM4

PSM4-rubber (black particles for anti-skid) or PVC (red and yellow patterns for anti-skid);

Edge sealing form



Yellow aluminum edge sealing

Surface material-PSM6, PSM11

Hard sole

Maximum allowable load (8 hours)



≤ 400N/cm2

Mechanical life PSM4

>1,000,000

Maximum humidity (23 degrees)



95% (condensation)

Mechanical life PSM6

>800,000

Ambient temperature

(usage environment)

-5℃ to 55℃ (no icing or condensation)

Mechanical life PSM11

>700,000

Ambient temperature

(storage environment)

-10℃ to 60℃

Cable

4-core*0.32² shielded cable, 3M standard (can be customized and lengthened)

Triggering force

PSM4-Adult 30KG

PSM6/11-Adult 20KG

Output type

2NO(passive normally open)



Protection level

IP65

Series connection

Series connection of less than 5/6 blocks is allowed (or no more than 4-5 square meters)

Thickness

PSM4-14mm

PSM6-15mm

PSM11-11mm

Controller maximum voltage

DC24V (using 0V control)



Response time

<30ms

Switching current\voltage

Max.100mA \5V

Weight

About 20kg/m²

Allowed single block area

1.5m²

Conform to

Standard application

The non-isolated safety protection system composed of safety mat and SRC106 safety relay meets the following standards.EN1760-1 ISO13856-2  EN62061  EN ISO13849-1  EN60204-1  EN/IEC 61496-1






Non-standard safety carpets, special-shaped safety carpets

Non-standard safety carpets can be customized according to user requirements. The unilateral length of non-standard safety carpets should be ≤ 3 meters, and the total area should be less than 2.5 square meters.
Special-shaped safety carpets are customized according to user requirements. The classification and restrictions of special-shaped safety carpets are shown in the table below. The total area of the special-shaped safety carpet is ≯3 ㎡.


The protective layer of the safety carpet is a material with good physical and chemical barrier properties and a certain degree of mechanical protection. The surface layer has excellent anti-skid performance. According to the use environment and working conditions, the selected protective layer has the functions of anti-skid, oil resistance and corrosion resistance.

Physical barrier of the protective layer (room temperature 23 ℃)



FAQ: How long does it take to deliver?

A: The delivery time for less than 3 sets of carpets is 3~5 days. The delivery time for less than 3~5 sets of carpets is 4~7 days. The delivery time for less than 5~15 sets of carpets is 7~10 days.

The logistics transportation time depends on the address (shipping, trucking, railway, express delivery. Different addresses have different transportation methods).




Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your payment if we have the item in stock. Otherwise, please confirm with us for lead time.

Q: What is your accepted payment type?
A: Wire transfer, Paypal and Western Union, and Alibaba Trade Assurance.We only accept Paypal and Western Union, and Alibaba Trade Assurance for payment amounts below USD400.

Q: What logistic forwarder do you usually work with?
A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q: What if the Wireless Charging Bundle is not charging my device(s)?
A: 1. Check to ensure that your device is Qi-compliant.
2. Check to ensure that the AC adapter you’re using with the Wireless Charging Bundle has an output of 2A or more.
3. Check to ensure that you are placing your phone on the center of Wireless Charging Bundle.
4. Check to ensure the phone is not in a 5mm or thicker case when charging.
5. Check to ensure there is no metal obstruction on the back of the phone/phone case, or credit cards inside the case.
6. The Wireless Charging Bundle’s cable may be faulty. Try using a different cable.
7. Restart your phone. If the problem persists, please email us at support@anker.com to claim your 18-month warranty. Request sent to owner.

Q: How does the Wireless Charging Bundle charging speed compare to a traditional wired charger?
A: It depends on your device, but wireless charging generally charges at a slower rate.

Q: What is the Wireless Charging Bundle charging speed?
A: Charging speed varies depending on the device. You can expect a maximum charge current of 1A.

Q: What kind of AC adapter should I use with Wireless Charging Bundle?
A: Make sure that the AC adapter that you use has a minimum output of 2A, otherwise your devices may not charge properly.

Q: Can I use a different USB cable instead of the cable that comes with Wireless Charging Bundle?
A: Yes, other Micro USB cables can be used, but to ensure the utmost safety and performance, we strongly recommend using your device’s original cable (OEM) to charge your devices with the Wireless Charging Bundle.

Q: What does Wireless Charging Bundle’s LED indicator show while charging?
A: When the charging pad is powered up, you pick up your phone during charging, or your phone is fully charged, the LED indicator will display blue for 3 seconds before turning off. While your phone is charging, the LED will display a steady blue. If your phone is not charging normally or the temperature is too high, the LED will flash blue. Request sent to owner.

Q: Is radiation from wireless chargers harmful to one’s health?
A: The PowerPort Wireless 5 Pad only emits non-ionizing radiation which is not harmful to humans. What’s more, it’s certified with FCC, CE, RoHS, etc.

Q: Does wireless charging affect other wireless devices?
A: No. Wireless chargers use frequencies between 110-205kHz, which are in a different range than most wireless devices. What’s more, it’s certified with FCC, CE, RoHS, etc.

Q: Does this charger produce excessive heat?
A: When in use, this charger’s temperature should not exceed 104°F/40°C.

...
