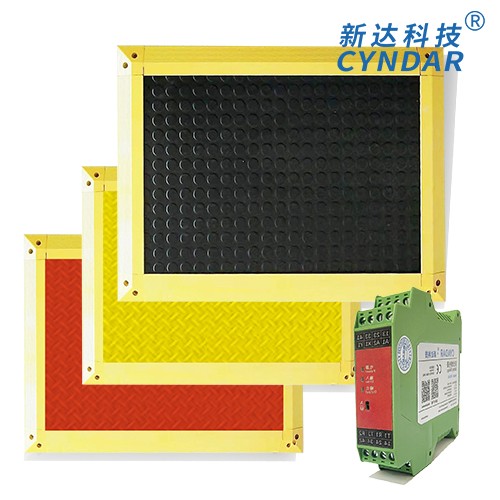

Product Item:PSM4
Cable: 4 cores * 0.32² * 3m shielded cable (can be customized to be extended, can be customized to be 2 cores)
Complies with: EN ISO 13849-1 (PLd/Safety Category 3) and EN ISO 13856-1
Controller: Can be used with SRC106 safety mat controller
Frame: 16mm thickness, yellow aluminum alloy
Size: Various sizes can be flexibly customized, the minimum size is 500*500 (mm)
Splicing: Multiple pieces can be spliced ​​together for one device
Mechanical life: 1 million times
For more details, please
  • Product Detail
  • FAQs

Industrial Safety System Description

Safety Mat and Smart Safety Controller

Download Safety Mat Brochure


For more details, please add WhatsApp consultation: +8618922155361

safety cushion mat is a protection device to protect people

Features:

1. Any rectangular size can be assembled

2. Have safety level certification

3. Use in combination with safety mat controller



Model specifications



 PSM4 -   A   *  B   -   C   D   E   F  -  G  - H




 A

BCDEFGH

Model

WidthLengthNumber of splicingSize DescriptionColor/Material ConfigurationResistor ConfigurationCable lengthController

PSM4

Default

L2:Safety pad width

L1: safety pad length

1:Not writing

A: After installing the outer frame

B: Black rubber surface (default)

K: 4-core cable (default)


3m:  Standard configuration. Not writing (default)

SRC: safety relay

PSM6



2: Splice 2 pieces

F: Net carpet size, additional frame required

Y: Yellow PVC (pattern)

KF: 2 sets of 2 cores

6m: 6 meters cable


PSM11



3: Splice 3 pieces

P: Net carpet size, without outer frame

H: Red PVC (pattern)

R: With terminal resistor (8.2KΩ)

8m: 8 meters cable





4: Splice 4 pieces

S: Customized type






For example:

PSM4-1000*500-ABK-SRC

Technical parameters - 14mm thick hard mat, total size including outer frame installation is 1000*500 (mm), length and width each add 90mm (excluding 15mm stuck in the mat), clean mat is 910*410 (mm), black rubber surface, K-type 4-core cable, 3 meters; equipped with a safety relay

PSM4-2000*1000-2FHR-8m-SRC



Safety mat

Adapt to detection range

It is suitable for inspection personnel in general working conditions and cannot withstand vehicle crushing and heavy object impact.

Recommended use occasions

Suitable for safety protection in personnel operating areas;

PSM4 - regular model, the hard board is more wear-resistant and durable, and is suitable for one side larger than 400mm (the default is PSM4 without instructions);

PSM6 - Soft pad, more responsive, non-bendable, suitable for small sizes;

PSM11 - soft padded, thinner, non-bendable, height restricted for narrow locations;

Applicable industries

Paper industry, electronics industry, automobile welding production lines, forging production lines, general industrial applications and automatic palletizers and other light and heavy industrial applications



Dimensions (net mat)



Customized width range: 200mm-1000mm

Customized length range: 200mm-2000mm

Surface Material-PSM4

PSM4-rubber (black particles for anti-skid) or PVC (red and yellow patterns for anti-skid);

Edge sealing form



Yellow aluminum edge sealing

Surface material-PSM6, PSM11

Hard sole

Maximum allowable load (8 hours)



≤ 400N/cm2

Mechanical life PSM4

>1,000,000

Maximum humidity (23 degrees)



95% (condensation)

Mechanical life PSM6

>800,000

Ambient temperature

(usage environment)

-5℃ to 55℃ (no icing or condensation)

Mechanical life PSM11

>700,000

Ambient temperature

(storage environment)

-10℃ to 60℃

Cable

4-core*0.32² shielded cable, 3M standard (can be customized and lengthened)

Triggering force

PSM4-Adult 30KG

PSM6/11-Adult 20KG

Output type

2NO(passive normally open)



Protection level

IP65

Series connection

Series connection of less than 5/6 blocks is allowed (or no more than 4-5 square meters)

Thickness

PSM4-14mm

PSM6-15mm

PSM11-11mm

Controller maximum voltage

DC24V (using 0V control)



Response time

<30ms

Switching current\voltage

Max.100mA \5V

Weight

About 20kg/m²

Allowed single block area

1.5m²

Conform to

Standard application

The non-isolated safety protection system composed of safety mat and SRC106 safety relay meets the following standards.EN1760-1 ISO13856-2  EN62061  EN ISO13849-1  EN60204-1  EN/IEC 61496-1





Industrial field: As a pressure-sensitive safety protection device, it is used to protect equipment such as welding robots and rubber and plastic machinery to prevent injuries.

Technical specifications:

Size specifications: Safety mats are available in a variety of sizes, ranging from 300X600 to 1200X1800, and can be customized according to the customer's actual protection requirements.

Safety level: It meets the safety level 3 requirements of EN1760-1 and EN ISO 13856-1 standards and has a CE mark to ensure safe use.

In summary, safety mats have unique advantages in terms of safety, material properties, functionality, application areas and technical specifications, providing reliable protection for different occasions.
