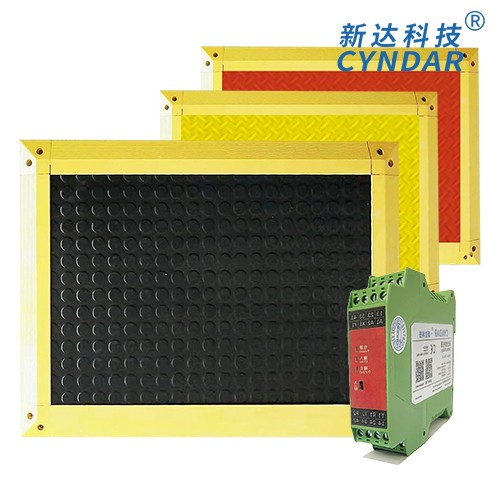

A New Perspective on Industrial Safety Mat Systems

Product Item：PSM4

Cable: 4 cores * 0.32² * 3m shielded cable (can be customized to be extended, can be customized to be 2 cores)
Complies with: EN ISO 13849-1 (PLd/Safety Category 3) and EN ISO 13856-1
Controller: Can be used with SRC106 safety mat controller
Frame: 16mm thickness, yellow aluminum alloy
Size: Various sizes can be flexibly customized, the minimum size is 500*500 (mm)
Splicing: Multiple pieces can be spliced together for one device
Mechanical life: 1 million times
For more details, please

Product Detail
FAQs

A new perspective on industrial safety systems: safety mats and smart guard centers

Product highlights:

In the field of industrial safety, we have launched a revolutionary product - a safety mat that combines advanced tactile surface sensor technology with a high-performance smart guard center. This product is customized and needs to be produced according to your needs, so please reserve appropriate delivery time. For more detailed technical parameters, we have prepared a product manual for you, please download and view it at any time.

If you are interested in our products or have any questions, please feel free to contact us via WhatsApp at +8618922155361. We look forward to working with you to create a safer and more efficient industrial environment.

Download Safety Mat Brochure


Model specifications

PSM4 - A * B - C D E F - G - H

	A	B	C	D	E	F	G	H
Model	Width	Length	Number of splicing	Size Description	Color/Material Configuration	Resistor Configuration	Cable length	Controller
PSM4 Default	L2:Safety pad width	L1: safety pad length	1：Not writing	A: After installing the outer frame	B: Black rubber surface (default)	K: 4-core cable (default)	3m: Standard configuration. Not writing (default)	SRC: safety relay
PSM6			2: Splice 2 pieces	F: Net carpet size, additional frame required	Y: Yellow PVC (pattern)	KF: 2 sets of 2 cores	6m: 6 meters cable
PSM11			3: Splice 3 pieces	P: Net carpet size, without outer frame	H: Red PVC (pattern)	R: With terminal resistor (8.2KΩ)	8m: 8 meters cable
			4: Splice 4 pieces	S: Customized type

For example:

PSM4-1000*500-ABK-SRC

Technical parameters - 14mm thick hard mat, total size including outer frame installation is 1000*500 (mm), length and width each add 90mm (excluding 15mm stuck in the mat), clean mat is 910*410 (mm), black rubber surface, K-type 4-core cable, 3 meters; equipped with a safety relay

PSM4-2000*1000-2FHR-8m-SRC

Safety pad parameters

Safety mat
Adapt to detection range	It is suitable for inspection personnel in general working conditions and cannot withstand vehicle crushing and heavy object impact.
Recommended use occasions	Suitable for safety protection in personnel operating areas; PSM4 - regular model, the hard board is more wear-resistant and durable, and is suitable for one side larger than 400mm (the default is PSM4 without instructions); PSM6 - Soft pad, more responsive, non-bendable, suitable for small sizes; PSM11 - soft padded, thinner, non-bendable, height restricted for narrow locations;
Applicable industries	Paper industry, electronics industry, automobile welding production lines, forging production lines, general industrial applications and automatic palletizers and other light and heavy industrial applications
Dimensions (net mat)	Customized width range: 200mm-1000mm Customized length range: 200mm-2000mm				Surface Material-PSM4	PSM4-rubber (black particles for anti-skid) or PVC (red and yellow patterns for anti-skid);
Edge sealing form	Yellow aluminum edge sealing				Surface material-PSM6, PSM11	Hard sole
Maximum allowable load (8 hours)	≤ 400N/cm2				Mechanical life PSM4	＞1，000,000
Maximum humidity (23 degrees)	95% (condensation)				Mechanical life PSM6	＞800,000
Ambient temperature (usage environment)	-5℃ to 55℃ (no icing or condensation)				Mechanical life PSM11	＞700,000
Ambient temperature (storage environment)	-10℃ to 60℃				Cable	4-core*0.32² shielded cable, 3M standard (can be customized and lengthened)
Triggering force	PSM4-Adult 30KG		PSM6/11-Adult 20KG		Output type	2NO(passive normally open)
Protection level	IP65				Series connection	Series connection of less than 5/6 blocks is allowed (or no more than 4-5 square meters)
Thickness	PSM4-14mm	PSM6-15mm		PSM11-11mm	Controller maximum voltage	DC24V (using 0V control)
Response time	＜30ms				Switching current\voltage	Max.100mA \5V
Weight	About 20kg/m²				Allowed single block area	1.5m²
Conform to Standard application	The non-isolated safety protection system composed of safety mat and SRC106 safety relay meets the following standards.EN1760-1 ISO13856-2 EN62061 EN ISO13849-1 EN60204-1 EN/IEC 61496-1

Customization and authoritative certification:

Our safety mat system supports customization of various rectangular sizes to meet the needs of your different work areas. At the same time, we have obtained safety level certification from authoritative organizations to ensure the reliability and safety of products in various industrial environments.

FAQ: Does the safety mat use automatic reset or manual reset?

A: The safety mat applies pressure to the surface and then triggers a signal to control the device to stop working. If someone steps on the mat, the machine will stop. If a person walks on the mat, the pressure will be sometimes light and sometimes heavy. It may cause the device to disconnect when it starts. Therefore, it is recommended to use manual reset to meet safety standards.

When the PLC has a reset function, the safety relay of the safety mat uses automatic reset and the reset function is implemented by the PLC. When there is no PLC or other reset function. The safety relay must use the manual reset function (X1 is connected to the reset switch and the code is turned to M)
