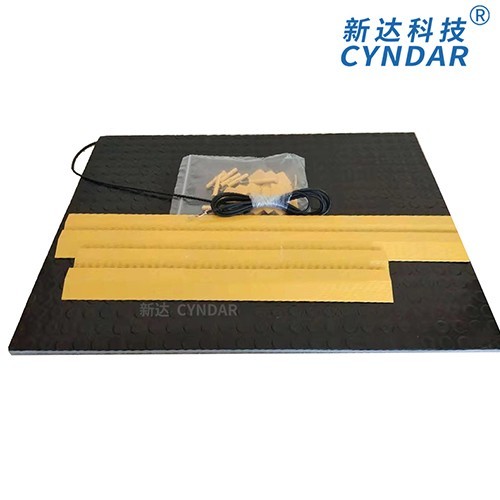

Safety mat to protect operators

Product Item：PSM4

Cable: 4 cores * 0.32² * 3m shielded cable (can be customized to be extended, 2 cores can be customized)
Complies with: EN ISO 13849-1 (PLd/Safety Category 3) and EN ISO 13856-1
Controller: Can be used with SRC106 safety mat controller
Trigger force: >30kg
Applicable environment: factory
Mat: 14mm thickness, hard board, durable and long life

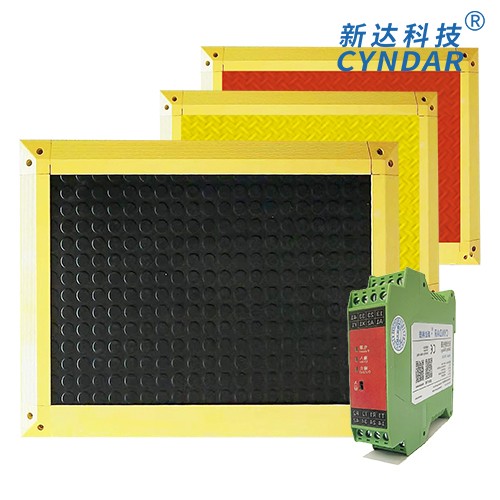

Material: Normally black EPDM rubber, yellow is PVC, red is PVC
For more details, please refer to the product manual

Product Detail
FAQs

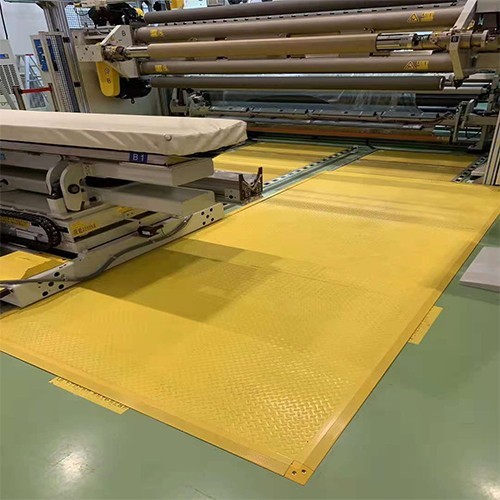

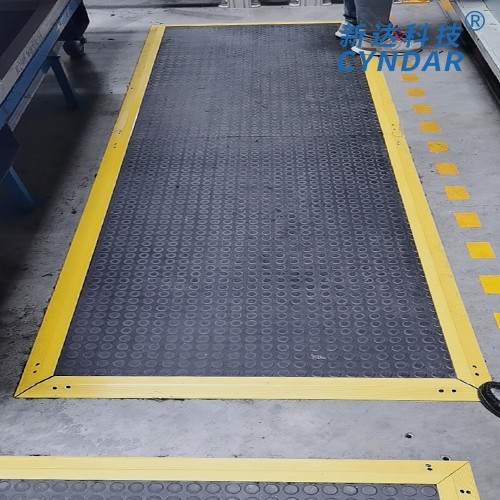

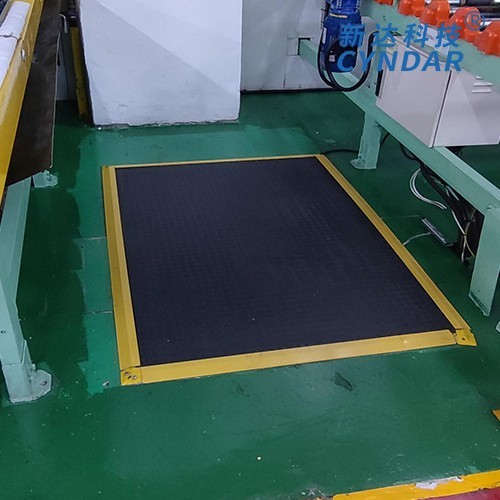

In a highly competitive industrial environment, safety is the primary prerequisite for production. Cyndar safety mats are used to detect whether there are people on the surface area of the mat around dangerous machines. In industrial applications, it is a safety protection device for automated equipment that meets the highest safety protection requirements (EN ISO13849-1). Prevent personal injury and danger to people in the area caused by machine movement. Provide necessary safety protection for people working in dangerous areas. Cyndar industrial safety mats are your best choice. They can not only provide solid safety protection, effectively reduce work-related accidents, protect employee safety, but also help you improve work efficiency and save costs.

Product selection and technical standards

Model specifications

PSM4 - A * B - C D E F - G - H

	A	B	C	D	E	F	G	H
Model	Width	Length	Number of splicing	Size Description	Color/Material Configuration	Resistor Configuration	Cable length	Controller
PSM4 Default	L2:Safety pad width	L1: safety pad length	1：Not writing	A: After installing the outer frame	B: Black rubber surface (default)	K: 4-core cable (default)	3m: Standard configuration. Not writing (default)	SRC: safety relay
PSM6			2: Splice 2 pieces	F: Net carpet size, additional frame required	Y: Yellow PVC (pattern)	KF: 2 sets of 2 cores	6m: 6 meters cable
PSM11			3: Splice 3 pieces	P: Net carpet size, without outer frame	H: Red PVC (pattern)	R: With terminal resistor (8.2KΩ)	8m: 8 meters cable

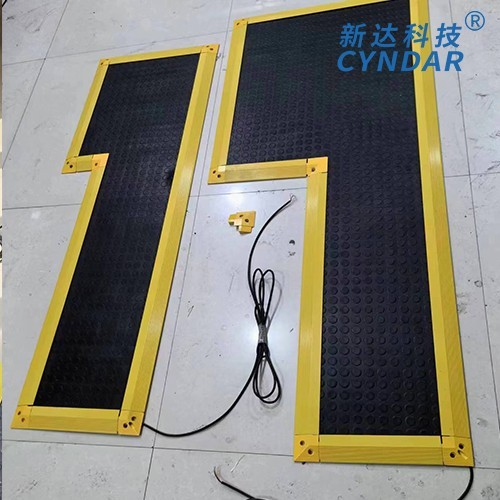

			4: Splice 4 pieces	S: Customized type

For example:

PSM4-1000*500-ABK-SRC

Technical parameters - 14mm thick hard mat, total size including outer frame installation is 1000*500 (mm), length and width each add 90mm (excluding 15mm stuck in the mat), clean mat is 910*410 (mm), black rubber surface, K-type 4-core cable, 3 meters; equipped with a safety relay

PSM4-2000*1000-2FHR-8m-SRC

Technical parameters - 14mm thick hard mat, two clear mats with dimensions of 1000*1000 assembled into 2000*1000 (mm), with outer frame, 2090*1090 (mm) after installing the outer frame, red PVC material, terminals with resistors, 2-core cable, 8 meters, equipped with a safety relay relay

PSM6-500*300-PBK-6m-SRC

Technical parameters - 13mm thickness soft cushion, clean mat 500*300 (mm), without outer frame, black rubber mat, K-type 4-core cable, 6 meters of wire; equipped with a safety relay

Common use specifications of products

Product model	Width Net mat size	Length Net mat size	Overall dimensions of mat and frame	Color material	Output type	Outline way	Controller
PSM4-490*590-ABK-SRC	400mm	500mm	490*590	14mm Black NBR	2NO (Passive NO )	4 cores/2 cores (external resistance)	SRC106
PSM4-590*590-ABK-SRC	500mm	500mm	590*590	14mm Black NBR	2NO (Passive NO )	4 cores/2 cores (external resistance)	SRC106
PSM4-590*840-ABK-SRC	500mm	1000mm	590*840	14mm Black NBR	2NO (Passive NO )	4 cores/2 cores (external resistance)	SRC106
PSM4-590*1090-ABK-SRC	750mm	1000mm	590*1090	14mm Black NBR	2NO (Passive NO )	4 cores/2 cores (external resistance)	SRC106
PSM4-840*1090-ABK-SRC	1000mm	1000mm	840*1090	14mm Black NBR	2NO (Passive NO )	4 cores/2 cores (external resistance)	SRC106
PSM4-1090*1090-ABK-SRC	1000mm	1500mm	1090*1090	14mm Black NBR	2NO (Passive NO )	4 cores/2 cores (external resistance)	SRC106

Safety mat
Adapt to detection range	It is suitable for inspection personnel in general working conditions and cannot withstand vehicle crushing and heavy object impact.
Recommended use occasions	Suitable for safety protection in personnel operating areas; PSM4 - regular model, the hard board is more wear-resistant and durable, and is suitable for one side larger than 400mm (the default is PSM4 without instructions); PSM6 - Soft pad, more responsive, non-bendable, suitable for small sizes; PSM11 - soft padded, thinner, non-bendable, height restricted for narrow locations;
Applicable industries	Paper industry, electronics industry, automobile welding production lines, forging production lines, general industrial applications and automatic palletizers and other light and heavy industrial applications
Dimensions (net mat)	Customized width range: 200mm-1000mm Customized length range: 200mm-2000mm				Surface Material-PSM4	PSM4-rubber (black particles for anti-skid) or PVC (red and yellow patterns for anti-skid);
Edge sealing form	Yellow aluminum edge sealing				Surface material-PSM6, PSM11	Hard sole
Maximum allowable load (8 hours)	≤ 400N/cm2				Mechanical life PSM4	＞1，000,000
Maximum humidity (23 degrees)	95% (condensation)				Mechanical life PSM6	＞800,000
Ambient temperature (usage environment)	-5℃ to 55℃ (no icing or condensation)				Mechanical life PSM11	＞700,000
Ambient temperature (storage environment)	-10℃ to 60℃				Cable	4-core*0.32² shielded cable, 3M standard (can be customized and lengthened)
Triggering force	PSM4-Adult 30KG		PSM6/11-Adult 20KG		Output type	2NO(passive normally open)
Protection level	IP65				Series connection	Series connection of less than 5/6 blocks is allowed (or no more than 4-5 square meters)
Thickness	PSM4-14mm	PSM6-15mm		PSM11-11mm	Controller maximum voltage	DC24V (using 0V control)
Response time	＜30ms				Switching current\voltage	Max.100mA \5V
Weight	About 20kg/m²				Allowed single block area	1.5m²
Conform to Standard application	The non-isolated safety protection system composed of safety mat and SRC106 safety relay meets the following standards.EN1760-1 ISO13856-2 EN62061 EN ISO13849-1 EN60204-1 EN/IEC 61496-1


Barrier performance of safety carpet protective layer

The protective layer of the safety carpet is a material with good physical and chemical barrier properties and a certain degree of mechanical protection. The surface layer has excellent anti-skid performance. According to the use environment and working conditions, the selected protective layer has the functions of anti-skid, oil resistance and corrosion resistance.

Precautions for use

Be sure to use safety mats and safety relays with safety function certification.  Be sure to use the safety mat with the safety relays in this instruction. Do not connect the safety mat directly to the switch contacts of ordinary intermediate relays for use.  The safety mat cannot be directly connected to the PLC for use.

Please regularly check whether the safety carpet is working properly to ensure its safety function.

Please replace the safety carpets that have exceeded their service life in time.

Please replace the safety carpet with damaged surface protection layer in time.


FAQ: What materials are there for safety mats?

A: Safety mats are made of rubber, divided into hard and soft boards. The hard board model is PSM4, which is more wear-resistant; the soft board is more sensitive and suitable for sizes below 500*500mm. Safety mats are also made of PVC material, which is a hard board and has yellow and red colors.

For details, please refer to the model table
